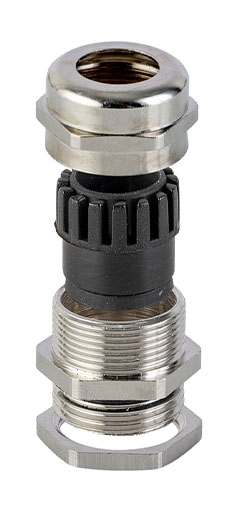

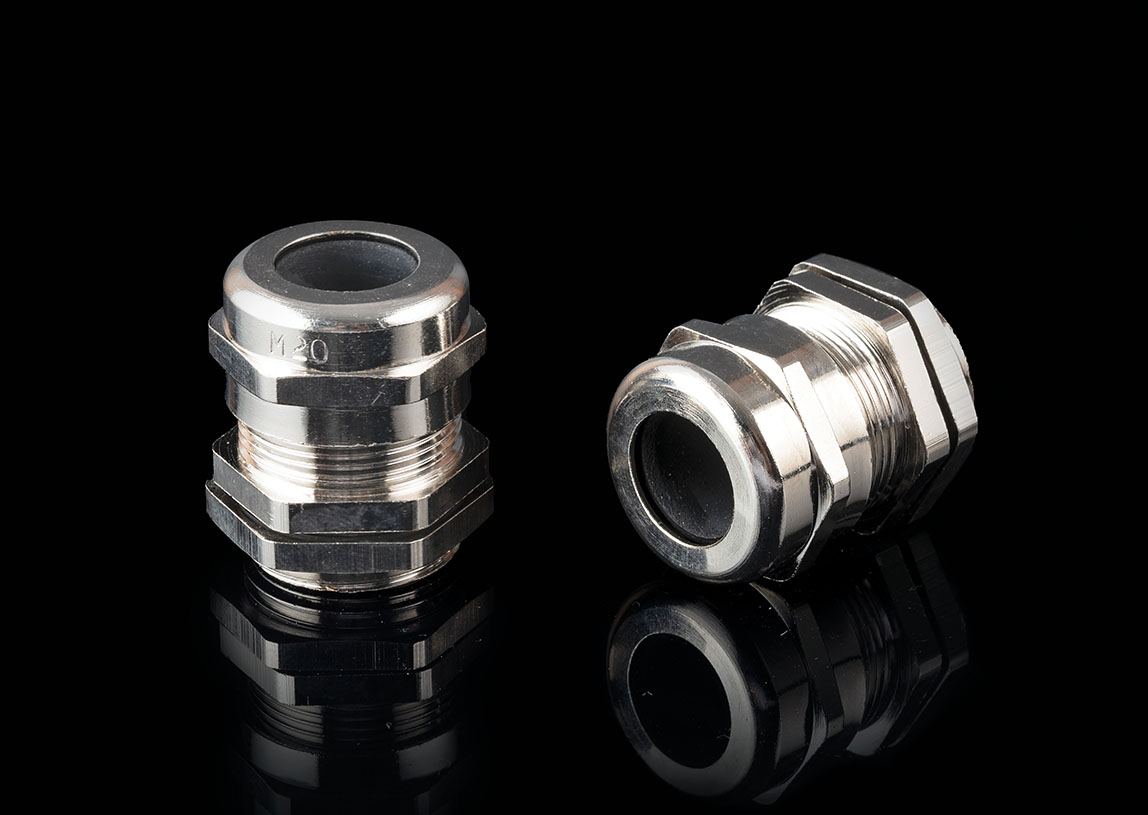

PG Cable Glands

Neutrical International's PG Cable Glands offer reliable and secure connections for industrial, marine, mining, and hazardous environments. Made from high-quality materials, these glands ensure superior performance and durability. They provide protection against environmental factors and mechanical stress, making them ideal for a variety of applications. Our PG Cable Glands deliver robust and efficient solutions for demanding environments.

Key Features of PG Cable Glands

  • Durable Construction: Manufactured from high-quality materials for enhanced durability and longevity.
  • Environmental Resistance: Provides excellent protection against dust, water, and corrosion, ensuring reliable performance.
  • Efficient Installation: Designed for quick and straightforward installation, reducing labor time and costs.
  • Multiple Sizing Options: Available in various sizes to accommodate different cable diameters and application needs.

Technical Details
Size PG 7 TO PG 48
Standard BS EN50262 : 1999
IP Rating IP68
Function Provide for seal on outer sheath of the unarmoured cable
Material Brass BS 2874 CZ121 PB3
Options Threads PG
Seals Solid & Grommet Rubber
Finish Natural Brass Finish, Nickel Finish
Accessories Matching Accessories Available Like Lock Nuts & '0' Ring
Operating Temp 20° C to +120° C

Specifications
CODE NO. THREAD SIZE (A) ENTRY THREAD LENGTH (B) C A/F A/C CABLE CLAMPING RANGE (MIN - MAX) MM TIGHTENING TORQUE IN Nm INSTALLATION TORQUE IN Nm IMPACT TEST CATEGORY
NI-IP68-7 PG7 6 7 14 15.5 3 - 6.5 0.1 6.25 3
NI-IP68-7-1 PG7 6 7 14 15.5 2 - 5 0.1 6.25 3
NI-IP68-9 PG9 7 8.5 17 19 4 - 8 0.1 6.25 3
NI-IP68-9-1 PG9 7 8.5 17 19 2 - 6 0.1 6.25 3
NI-IP68-11 PG11 7 10.5 20 22 5 - 10 0.15 6.25 3
NI-IP68-11-1 PG11 7 10.5 20 22 3 - 7 0.1 6.25 3
NI-IP68-13 PG13.5 7 12.5 22 24.5 6 - 12 0.35 6.25 3
NI-IP68-13-1 PG13.5 7 12.5 22 24.5 5 - 9 0.15 6.25 3
NI-IP68-16 PG16 6.5 14.5 24 26.5 10 - 14 0.35 7.5 3
NI-IP68-16-1 PG16 6.5 14.5 24 26.5 7 - 12 0.35 7.5 3
NI-IP68-21 PG21 8 18.5 31 34 13 - 18 0.6 10 4
NI-IP68-21-1 PG21 8 18.5 31 34 9 - 16 0.35 10 4
NI-IP68-29 PG29 9 25.5 40 44.5 18 - 25 0.8 10 4
NI-IP68-29-1 PG29 9 25.5 40 44.5 13 - 20 0.6 10 4
NI-IP68-36 PG36 10 33 50 55 25 - 32 0.9 10 5
NI-IP68-36-1 PG36 10 33 50 55 20 - 26 0.8 10 5
NI-IP68-42 PG42 11 39 55 60 32 - 38 0.9 10 5
NI-IP68-42-1 PG42 11 39 55 60 25 - 31 0.8 10 5
NI-IP68-48 PG48 13 46 65 70.5 37 - 44 1 10 5
NI-IP68-48-1 PG48 13 46 65 70.5 29 - 35 0.9 10 5

Why Choose Neutrical PG Cable Glands?

Opting for Neutrical International's PG Cable Glands means choosing superior quality, reliability, and performance. Our cable glands are precisely engineered to meet specific industry needs, ensuring secure and safe connections. We prioritize customer satisfaction by providing customized solutions tailored to your requirements. Our rigorous quality control processes guarantee that each product meets the highest standards. Additionally, our expert team offers exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands suitable for the most challenging environments. Our commitment to quality and innovation ensures that you receive products that not only meet but exceed your expectations, providing peace of mind and reliability for all your application needs.
