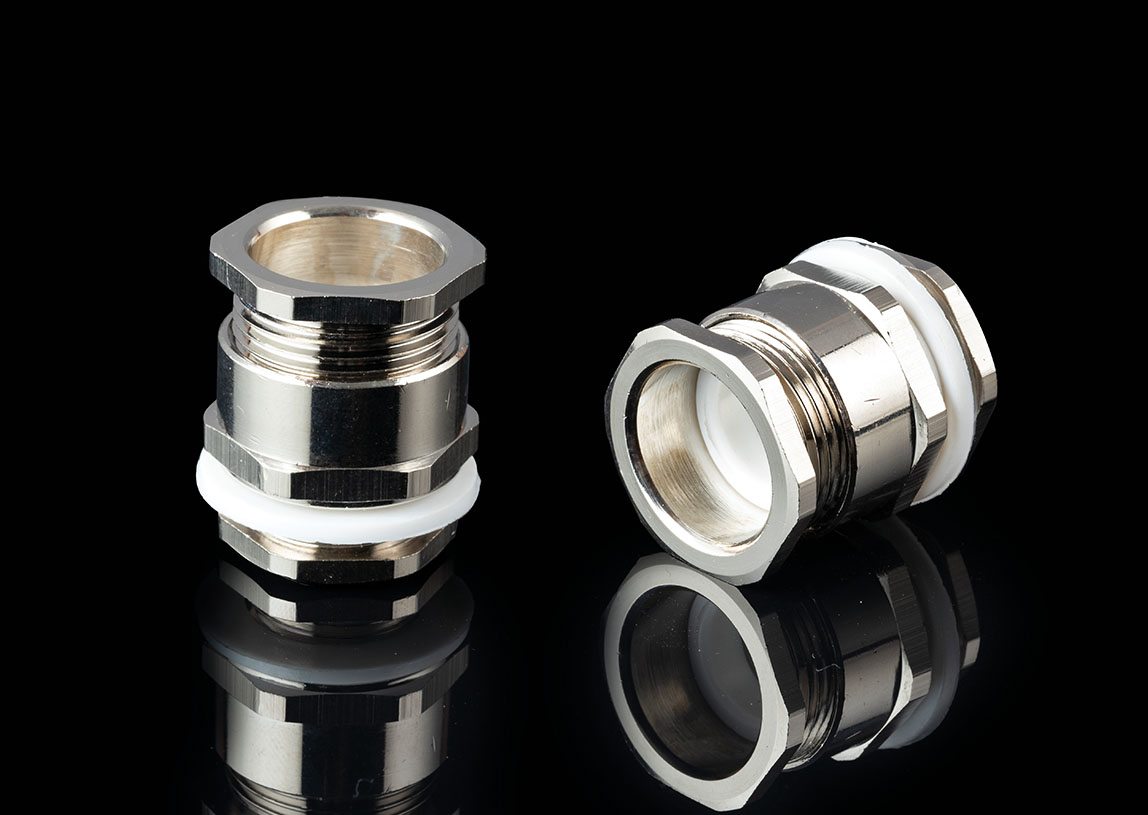

A2F Type Cable Glands

Neutrical International's A2F Type Cable Glands are designed for secure and reliable connections in industrial, marine, mining, and hazardous environments. Made from high-quality brass, these glands ensure superior durability and performance. They offer protection against environmental factors and mechanical stress, making them ideal for a variety of applications. Our A2F Type Cable Glands deliver robust and efficient solutions for demanding environments.

Key Features of A2F Type Cable Glands

  • Durable Brass Construction: Manufactured from high-quality brass for enhanced durability and longevity.
  • Environmental Protection: Provides excellent resistance to dust, water, and corrosion, ensuring reliable performance.
  • Efficient Installation Process: Designed for quick and easy installation, reducing labor time and costs.
  • Multiple Sizing Options: Available in various sizes to fit different cable diameters and application needs.

Technical Details
Size 20 MM TO 90 MM S & L
Standard BS 6121 : PART 1 : 1989, EN 50262, IEC 62444
IP Rating IP66, IP67, IP68
Application For indoor or outdoor use with all types of SWA cable
Function A2F type glands provide a seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond between the armour cable and the gland
Material Silicone or Nitrile Rubber
Options Threads Metric, NPT, BSP & PG
Finish Natural Brass Finish, Nickel Finish
Accessories Matching Accessories Available Like PVC Shrouds, Lock Nuts & Earth Tag
Operating Temp Standard Seals -60° C to +130° C

Specifications
GLAND SIZE ENTRY THREAD MINIMUM LENGTH OF THREAD 'C' CABLE RANGE ACROSS FLATS ACROSS CORNERS
METRIC NPT MAX 'A' MIN 'B'
NI-A2F-20SS M20 1/2" 10 3.2 8.7 22 24.2
NI-A2F-20S M20 1/2" 10 6.1 11.7 22 24.2
NI-A2F-20 M20 1/2" 10 6.5 14 27 29.7
NI-A2F-25 M25 3/4" 10 11.1 20 36 39.6
NI-A2F-32 M32 1" 10 17 26.3 41 45.1
NI-A2F-40 M40 1 1/4" 15 23.5 32.2 46 50.6
NI-A2F-50S M50 1 1/2" 15 31 38.2 55 60.5
NI-A2F-50 M50 2" 15 35.6 44.1 60 66
NI-A2F-63S M63 2" 15 41.5 50 65 71.5
NI-A2F-63 M63 2 1/2" 15 47.2 56 70 77
NI-A2F-75S M75 2 1/2" 15 54 62 80 88.7
NI-A2F-75 M75 3" 15 61.1 68 84 92.4

Why Choose Neutrical A2F Type Cable Glands?

Opting for Neutrical International's A2F Type Cable Glands means choosing superior quality, reliability, and performance. Our cable glands are precisely engineered to meet specific industry needs, ensuring secure and safe connections. We prioritize customer satisfaction by providing customized solutions tailored to your requirements. Our rigorous quality control processes guarantee that each product meets the highest standards. Additionally, our expert team offers exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands suitable for the most challenging environments. Our commitment to quality and innovation ensures that you receive products that not only meet but exceed your expectations, providing peace of mind and reliability for all your application needs.
