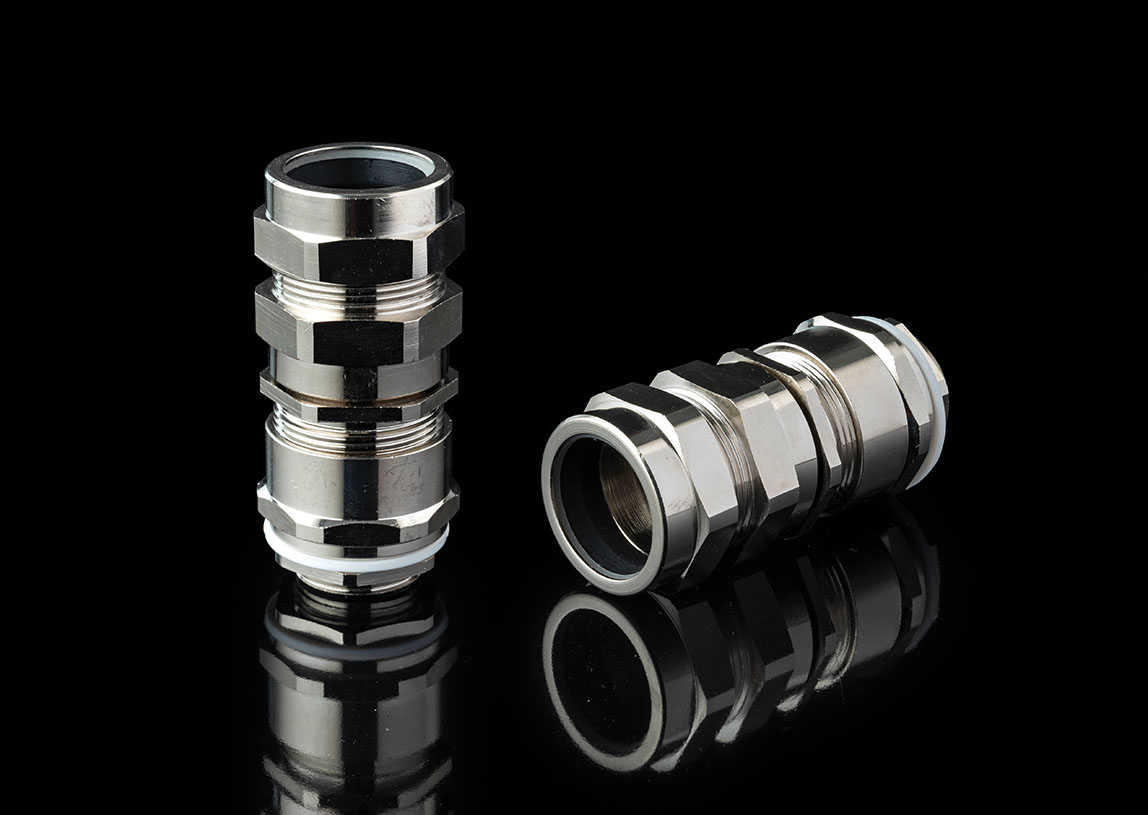

E1FW Type Cable Glands

Neutrical International's E1FW Type Cable Glands provide reliable and secure connections in industrial, marine, mining, and hazardous environments. Made from high-quality brass, these glands ensure superior performance and durability. They offer excellent protection against environmental factors and mechanical stress, making them suitable for a wide range of applications. Our E1FW Type Cable Glands deliver robust and efficient solutions for demanding environments.

Key Features of E1FW Type Cable Glands

  • Premium Brass Construction: Manufactured from high-quality brass for enhanced durability and longevity.
  • Environmental Resistance: Provides excellent protection against dust, water, and corrosion, ensuring reliable performance.
  • Streamlined Installation: Designed for quick and straightforward installation, reducing labor time and costs.
  • Versatile Sizing Options: Available in various sizes to accommodate different cable diameters and application needs.

Technical Details
Size 20 MM TO 100 MM S & L
Standard BS 6121
IP Rating IP66 & 67
Application For indoor or outdoor use with all types of SWA cable

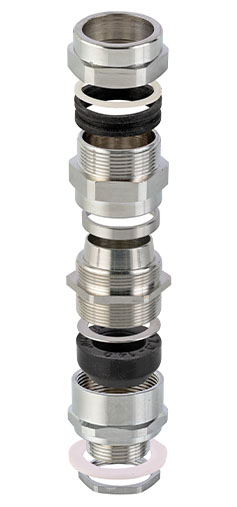

Function E1W type glands provide a seal on the inner sheath, a seal on the outer sheath and an armour specific armour clamp for armour cable. The armour clamp provides an electrical bond between the armour cable and the gland
Material Brass BS 2874 CZ121 PB3
Options Threads Metric, NPT, BSP & PG
Finish Natural Brass Finish, Nickel Finish
Accessories Matching Accessories Available Like PVC Shrouds, Lock Nuts & Earth Tag
Operating Temp Standard Seals -20° C to +80° C

Specifications
CODE NO. GLAND SIZE THREAD SIZE 'C' MINIMUM LENGTH OF THREAD 'C' CABLE RANGE 'A' CABLE RANGE 'B'
METRIC NPT MAX. MIN. MAX. MIN.
NI-E1F-20S E1F 20S M20 1/2" 15 8.8 11.7 11.8 15.8
NI-E1F-20L E1F 20L M20 1/2" 15 11.4 14 14 20.8
NI-E1F-25L E1F 25L M25 3/4" 15 17.3 20 20.3 27.4
NI-E1F-32L E1F 32L M32 1" 15 24.2 26.3 26.5 33.5
NI-E1F-40L E1F 40L M40 1 1/4" 15 29.5 32.2 33.2 40
NI-E1F-50S E1F 50S M50 1 1/2" 15 33 38.2 40 46.3
NI-E1F-50L E1F 50L M50 2" 15 38 44 44 52.6
NI-E1F-63S E1F 63S M63 2" 15 44 50.1 50 59
NI-E1F-63L E1F 63L M63 2 1/2" 15 50 56 56 65.3
NI-E1F-75S E1F 75S M75 2 1/2" 15 56 62 63.5 71.6
NI-E1F-75L E1F 75L M75 3" 15 62 68.5 69 78
NI-E1F-90 E1F 90 M90 3" 20 65 80 84 96
NI-E1F-100 E1F 100 M100 3 1/2" 20 82 90 84 102

Why Choose Neutrical E1FW Type Cable Glands?

Choosing Neutrical International's E1FW Type Cable Glands ensures top-tier quality, reliability, and performance. Our cable glands are meticulously engineered to meet specific industry requirements, providing secure and safe connections. We prioritize customer satisfaction by offering customized solutions tailored to your unique needs. Our rigorous quality control processes guarantee that every product meets the highest standards. Additionally, our expert team provides exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands in the most demanding environments, and experience the difference in quality and service.
