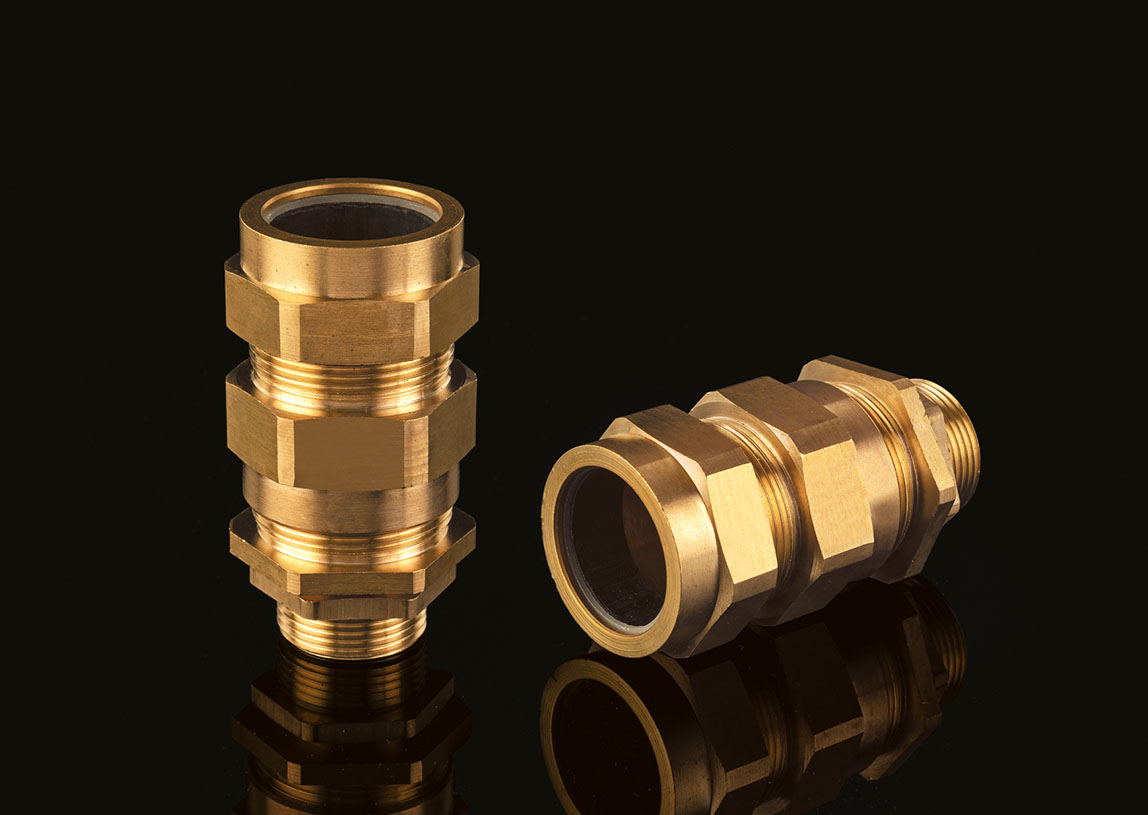

E1W Type Cable Glands

Neutrical International's E1W Type Cable Glands offer robust and reliable connections in industrial, marine, mining, and hazardous areas. Crafted from premium brass, these glands provide excellent durability and performance. They offer protection against environmental factors and mechanical stress, making them ideal for various applications. Our E1W Type Cable Glands ensure safety and efficiency in demanding environments.

Key Features of E1W Type Cable Glands

  • Premium Brass Construction: Manufactured from high-quality brass for enhanced durability and longevity.
  • Environmental Resistance: Offers excellent protection against dust, water, and corrosion, ensuring reliable performance.
  • Streamlined Installation: Designed for efficient and straightforward installation, reducing labor time and costs.
  • Versatile Sizing Options: Available in various sizes to accommodate different cable diameters and application needs.

Technical Details
Size 20 MM TO 90 MM S & L
Standard BS 6121
IP Rating IP66
Application FOR INDOOR OR OUTDOOR USE WITH ALL TYPES OF SWA CABLE.

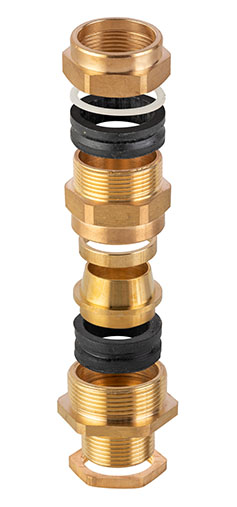

Function E1W TYPE GLANDS PROVIDE A SEAL THE INNER SHEATH, A SEAL ON THE SHEATH AND AN ARMOUR SPECIFIC ARMOUR CLAMP FOR ARMOURED CABLE. THE ARMOUR CLAMP PROVIDES AN ELECTRICAL BOND BETWEEN THE ARMOUR CABLE AND THE GLAND
Options Threads METRIC, NPT, BSP & PG.
Finish NATURAL BRASS FINISH, NICKEL FINISH.
Accessories MATCHING ACCESSORIES AVAILABLE LIKE PVC SHROUDS, LOCK NUTS & EARTH TAG
Operating Temp STANDARD SEALS -20 C TO +80 C.

Specifications
CODE NO. GLAND SIZE THREAD SIZE 'B' MINIMUM LENGTH OF THREAD 'C' CABLE RANGE 'A' CABLE RANGE 'B'
METRIC NPT MAX. MIN. MAX. MIN.
NI-E1-20S E1W 20S M20 1/2" 15 11.7 8.8 11.8 16
NI-E1-20L E1W 20L M20 1/2" 15 14 11.4 14 20.8
NI-E1-25S E1W 25S M25 3/4" 15 16 13 18 24
NI-E1-25L E1W 25L M25 3/4" 15 20 17.3 20.3 27.4
NI-E1-32S E1W 32S M32 1" 10 23 20 24.5 31
NI-E1-32L E1W 32L M32 1" 15 26.3 24.2 26.5 33.5
NI-E1-40S E1W 40S M40 1 1/4" 15 29 26 30.4 36
NI-E1-40L E1W 40L M40 1 1/4" 15 32.1 29.5 32.2 40
NI-E1-50S E1W 50S M50 1 1/2" 15 38.1 33 40 46.5
NI-E1-50L E1W 50L M50 2" 15 44 38 44 52.6
NI-E1-63S E1W 63S M63 2" 20 50.5 44 50 59
NI-E1-63L E1W 63L M63 2 1/2" 20 56 50 56 66
NI-E1-75S E1W 75S M75 2 1/2" 20 62 56 63.5 71.6
NI-E1-75L E1W 75L M75 3" 20 68.5 62 69 78
NI-E1-90S E1W 90S M90 3" 20 80 65 84 96
NI-E1-100 E1W 100 M100 3 1/2" 20 90 82 84 102

Why Choose Neutrical E1W Type Cable Glands?

Choosing Neutrical International's E1W Type Cable Glands ensures top-tier quality, reliability, and performance. Our cable glands are meticulously engineered to meet specific industry requirements, providing secure and safe connections. We prioritize customer satisfaction by offering customized solutions tailored to your unique needs. Our rigorous quality control processes guarantee that every product meets the highest standards. Additionally, our expert team provides exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands in the most demanding environments, and experience the difference in quality and service.
