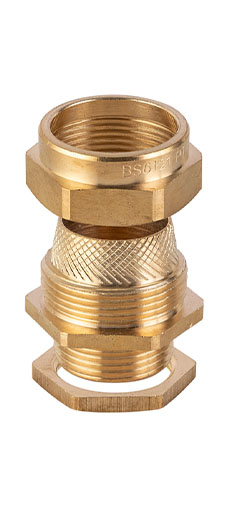

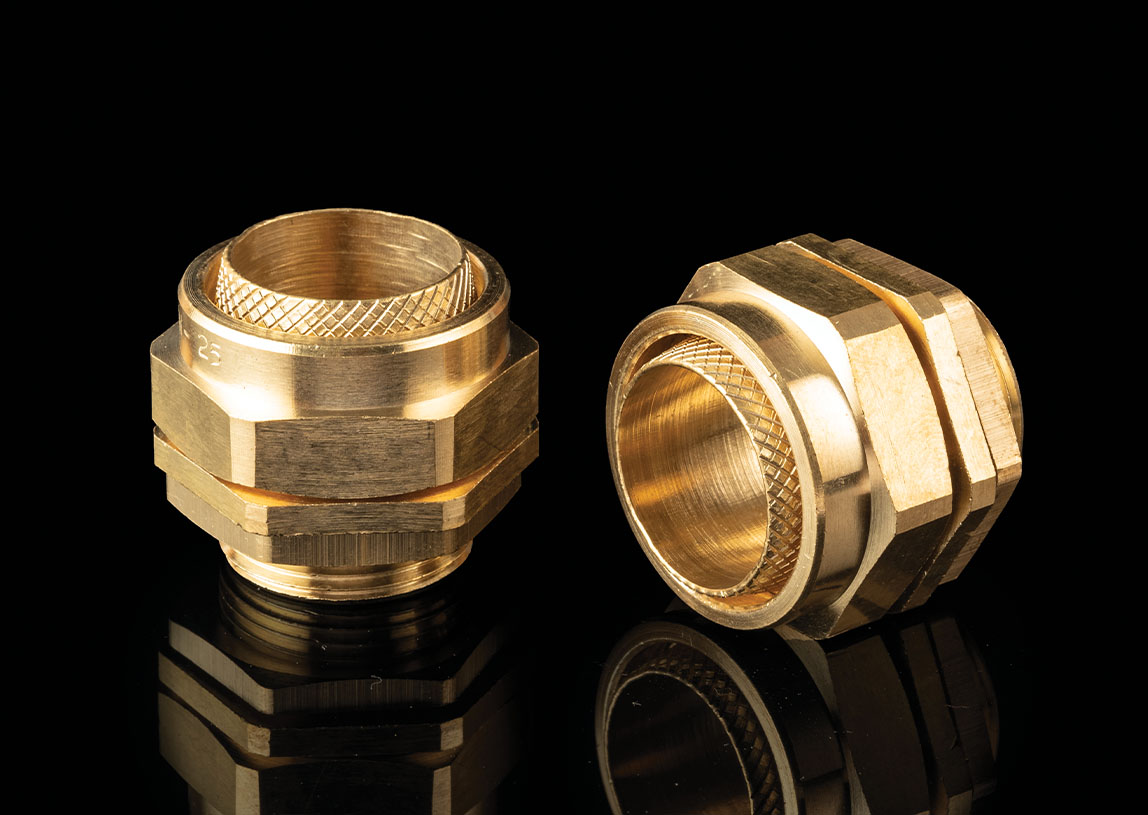

Neutrical International's CW 3 PT Type Cable Glands are engineered to deliver secure and reliable connections in industrial, marine, mining, and hazardous areas. Made from high-quality brass, these glands ensure exceptional durability and performance. They provide robust protection against environmental factors and mechanical stress. Our CW 3 PT Type Cable Glands are designed to meet a variety of application needs, offering versatile and reliable solutions for demanding environments.
Key Features of CW 3 PT Type Cable Glands
| Technical Details | |
| Size | 20 MM TO 90 MM S & L |
| Standard | BS 6121 |
| IP Rating | IP66 |
| Application | For indoor or outdoor use with all types of SWA cable |
| Function | CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond cable armour and the gland |
| Material | Brass BS 2874 CZ121 PB3 |
| Options Threads | Metric, NPT, BSP & PG |
| Finish | Natural Brass Finish, Nickel Finish |
| Accessories | Matching Accessories Available Like PVC Shrouds, Lock Nuts & Earth Tag |
| Operating Temp | Standard Seals -20° C to +80° C |
| Specifications | ||||||
| CODE NO. | GLAND SIZE | THREAD SIZE 'C' | MINIMUM LENGTH OF THREAD 'D' | CABLE RANGE | ||
| METRIC | NPT | MAX 'A' | MAX 'B' | |||
| NI-CN-20S | CW 20S | M20 | 1/2" | 10 | 11.8 | 15.8 |
| NI-CN-20L | CW 20L | M50 | 1/2" | 10 | 14 | 20.8 |
| NI-CN-25S | CW 25S | M75 | 3/4" | 10 | 18 | 24 |
| NI-CN-25L | CW 25L | M32 | 3/4" | 10 | 20 | 27.2 |
| NI-CN-32L | CW 32S | M25 | 1" | 10 | 24.5 | 31 |
| NI-CN-32L | CW 32L | M25 | 1" | 10 | 26.3 | 33.5 |
| NI-CN-40S | CW 40S | M63 | 1 1/4" | 13 | 30.4 | 38.5 |
| NI-CN-40L | CW 40L | M90 | 1 1/4" | 13 | 32.2 | 40 |
| NI-CN-50S | CW 50S | M32 | 1 1/2" | 13 | 38.2 | 46.3 |
| NI-CN-50L | CW 50L | M90 | 2" | 13 | 44 | 52.6 |
| NI-CN-63S | CW 63S | M63 | 2" | 14 | 50 | 59 |
| NI-CN-63L | CW 63L | M50 | 2 1/2" | 14 | 56 | 65.3 |
| NI-CN-75S | CW 75S | M40 | 2 1/2" | 15 | 62 | 71.6 |
| NI-CN-75L | CW 75L | M20 | 3" | 15 | 68 | 78 |
| NI-CN-90S | CW 90S | M75 | 3" | 18 | 84 | 96 |
| NI-CN-90L | CW 90L | M40 | 3" | 18 | 84 | 102 |
Opting for Neutrical International's CW 3 PT Type Cable Glands means choosing superior quality, reliability, and performance. Our cable glands are precisely engineered to meet specific industry needs, ensuring secure and safe connections. We prioritize customer satisfaction by providing customized solutions tailored to your requirements. Our rigorous quality control processes guarantee that each product meets the highest standards. Additionally, our expert team offers exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands suitable for the most challenging environments. Our commitment to quality and innovation ensures that you receive products that not only meet but exceed your expectations, providing peace of mind and reliability for all your application needs.
