BW 4 PT Cable Glands

Products Range


Unmatched Quality

Ensuring superior quality with rigorous checks and advanced technology, from materials to final product.

Contact Us

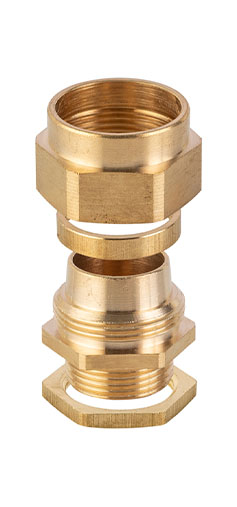

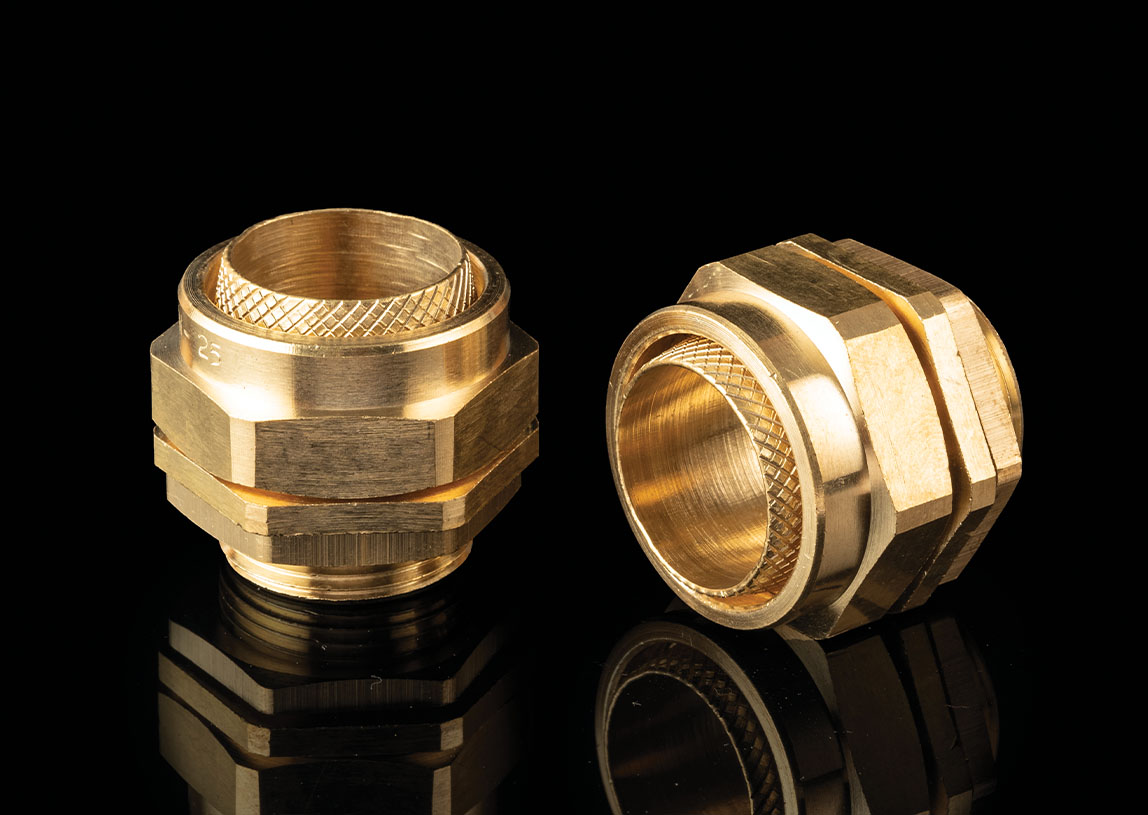

BW 4 PT Cable Glands

Neutrical International's BW 4 PT Cable Glands provide secure and reliable connections for industrial, marine, mining, and hazardous applications. Made from high-quality brass, these glands ensure superior performance and durability. They offer excellent protection against environmental factors and mechanical stress, making them ideal for a wide range of applications. Our BW 4 PT Cable Glands deliver versatile and robust solutions for demanding environments, ensuring safety and efficiency.

Key Features of BW 4 PT Cable Glands

  • High-Quality Brass: Constructed from premium brass for enhanced durability and longevity.
  • Environmental Protection: Provides excellent resistance to dust, water, and corrosion, ensuring reliable performance.
  • Simplified Installation: Designed for efficient and straightforward installation, reducing labor time and costs.
  • Various Sizing Options: Available in multiple sizes to fit different cable diameters and application needs.

Technical Details
Size 20 MM TO 90 MM S & L
Standard BS 6121
IP Rating IP30
Application Dry indoor, for use with all types of SWA cable
Function Provide mechanical cable retention & electrical wire continuity via armoured wire
Material Brass BS 2874 CZ121 PB3
Options Threads Metric, NPT, BSP & PG
Finish Natural Brass Finish, Nickel Finish
Accessories Matching Accessories Available Like PVC Shrouds, Lock Nuts & Earth Tag
Operating Temp Standard Seals -20° C to +80° C

Specifications
CODE NO. GLAND SIZE THREAD SIZE 'C' MINIMUM LENGTH OF THREAD 'D' CABLE RANGE 'A'
METRIC NPT MAX 'A' MAX 'B'
NI-B4-20S BW 20S M20 1/2" 10 11.5 15.5
NI-B4-20L BW 20L M20 1/2" 10 14 20.5
NI-B4-25S BW 25S M25 3/4" 10 18 24
NI-B4-25L BW 25L M25 3/4" 10 20 27.2
NI-B4-32S BW 32S M32 1" 10 26.3 33.5
NI-B4-32L BW 32L M32 1" 10 26.3 33.5
NI-B4-40S BW 40S M40 1 1/4" 13 31.5 39.5
NI-B4-40L BW 40L M40 1 1/4" 13 32 40
NI-B4-50S BW 50S M50 1 1/2" 13 38.2 46.3
NI-B4-50L BW 50L M50 2" 13 44 52.6
NI-B4-63S BW 63S M63 2" 14 50.1 59
NI-B4-63L BW 63L M63 2 1/2" 14 56 65.3
NI-B4-75S BW 75S M75 2 1/2" 15 62 71.6
NI-B4-75L BW 75L M75 3" 15 68 78
NI-B4-90S BW 90S M90 3" 18 80.5 91
NI-B4-90L BW 90L M90 3" 18 80.5 91

Why Choose Neutrical BW 4 PT Cable Glands?

Choosing Neutrical International's BW 4 PT Cable Glands ensures you receive top-quality, reliable, and high-performing products. Our cable glands are expertly engineered to meet specific industry requirements, providing secure and safe connections. We focus on customer satisfaction by offering customized solutions tailored to your needs. Our rigorous quality control processes guarantee that every product meets the highest standards. Additionally, our expert team provides exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands in the most demanding environments. Our commitment to quality and innovation ensures that you receive products that not only meet but exceed industry standards, providing reliability and peace of mind for all your application needs.
