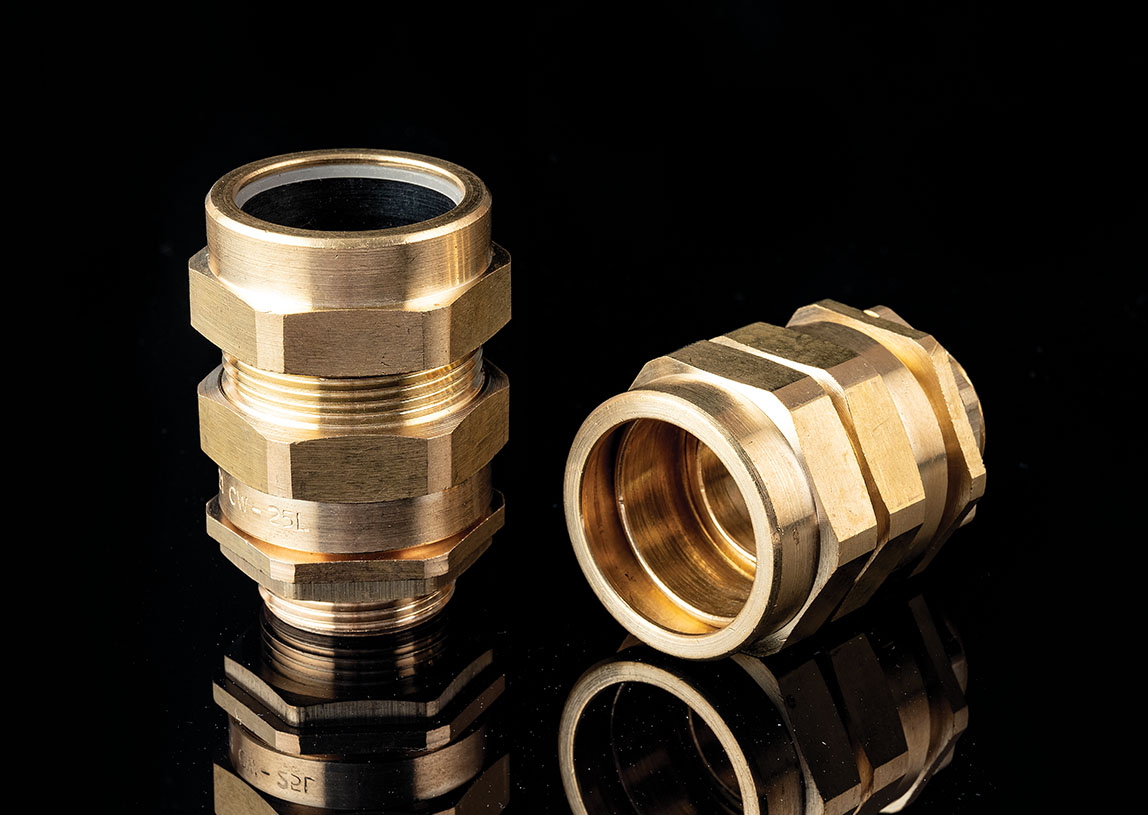

Neutrical International's CW 4 PT Type Cable Glands offer secure and reliable connections for industrial, marine, mining, and hazardous areas. Made from high-quality brass, these glands ensure exceptional performance and durability. They provide robust protection against environmental factors and mechanical stress. Our CW 4 PT Type Cable Glands are ideal for a wide range of applications, delivering versatile and reliable solutions.
Key Features of CW 4 PT Type Cable Glands
| Technical Details | |
| Size | 20 MM TO 90 MM S & L |
| Standard | BS 6121 |
| IP Rating | IP66 |
| Application | For indoor or outdoor use with all types of SWA cable |

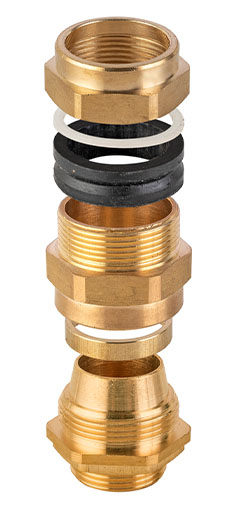

| Function | CW type glands provide a seal on the outer sheath and an armour specific armour clamp for armoured cable. The armour clamp provides an electrical bond armour cable and the gland |
| Material | Brass BS 2874 CZ121 PB3 |
| Options Threads | Metric, NPT, BSP & PG |
| Finish | Natural Brass Finish, Nickel Finish |
| Accessories | Matching Accessories Available Like PVC Shrouds, Lock Nuts & Earth Tag |
| Operating Temp | Standard Seals -20° C to +80° C |
| Specifications | ||||||
| CODE NO. | GLAND SIZE | THREAD SIZE 'B' | MINIMUM LENGTH OF THREAD 'C' | CABLE RANGE 'A' | ||
| METRIC | NPT | MAX. | MIN. | |||
| NI-C4-20S | CW 20S | M20 | 1/2" | 10 | 11.5 | 15.5 |
| NI-C4-20L | CW 20L | M20 | 1/2" | 10 | 14 | 20.5 |
| NI-C4-25S | CW 25S | M25 | 3/4" | 10 | 18 | 24 |
| NI-C4-25L | CW 25L | M25 | 3/4" | 10 | 20 | 27.2 |
| NI-C4-32S | CW 32S | M32 | 1" | 10 | 26.3 | 33.5 |
| NI-C4-32L | CW 32L | M32 | 1" | 10 | 26.3 | 33.5 |
| NI-C4-40S | CW 40S | M40 | 1 1/4" | 13 | 31.5 | 39.5 |
| NI-C4-40L | CW 40L | M40 | 1 1/4" | 13 | 32 | 40 |
| NI-C4-50S | CW 50S | M50 | 1 1/2" | 13 | 38.2 | 46.3 |
| NI-C4-50L | CW 50L | M50 | 2" | 13 | 44 | 52.6 |
| NI-C4-63S | CW 63S | M63 | 2" | 14 | 50.1 | 59 |
| NI-C4-63L | CW 63L | M63 | 2 1/2" | 14 | 56 | 65.3 |
| NI-C4-75S | CW 75S | M75 | 2 1/2" | 15 | 62 | 71.6 |
| NI-C4-75L | CW 75L | M75 | 3" | 15 | 68 | 78 |
| NI-C4-90S | CW 90S | M90 | 3" | 20 | 80.5 | 91 |
| NI-C4-90L | CW 90L | M90 | 3" | 20 | 80.5 | 91 |
Choosing Neutrical International's CW 4 PT Type Cable Glands ensures top-quality, reliability, and high performance. Our cable glands are expertly engineered to meet specific industry requirements, providing secure and safe connections. We prioritize customer satisfaction by offering customized solutions tailored to your needs. Our rigorous quality control processes guarantee that every product meets the highest standards. Additionally, our expert team provides exceptional customer support and technical assistance, ensuring you receive the best solutions for your applications. Trust Neutrical International for durable, high-performing cable glands in the most demanding environments. Our dedication to quality and innovation ensures that you receive products that not only meet but exceed your expectations, providing peace of mind and reliability for all your application needs.
